We offers an extensive production line of birefringent crystals for polarization applications.
Introduction:
Weoffers an extensive production line of birefringent crystals for polarization applications. Our crystal polarizer family includes Glan-Taylor Polarizers, Glan-Laser Polarizers, Glan-Thompson Polarizers, Wollaston Polarizers, Rochon Polarizers and Quartz Polarization Rotators. Substrate options have α-BBO (UV), calcite (visible to Near-IR), yttrium orthovanadate (YVO4, Near-IR to Mid-IR), MgF2 (UV to Mid-IR), and crystal quartz (UV to Near-IR). Both the mounted and unmounted crystals are available. Contact us freely to select the ideal combination of construction type, substrate, coating design, angle of operation and laser damage resistance level to suit your applications.
Specifications：
|
Wavelength Range |
Calcite:350-2300nm α-BBO: 200-3500nm |
|
Extinction Ratio |
Calcite:<5x10-5 α-BBO:<5x10-6 |
|
Surface Quality |
20/10 |
|
Dimension Tolerance |
0/-0.1mm |
|
Beam Deviation |
＜3′ |
|
Wavefront Distortion |
α-BBO:＜λ/4 @ 632.8nm Calcite:＜λ/2 @ 632.8nm |
|
Coating |
Single layer MgF2 |
|
Damage Threshold |
＞500MW/cm2 |
|
Housing |
Black Anodized Aluminum |
• High Polarization Purity
• Wide Wavelength Range
• High Total Transmission
Order Information：
PGT--- 100 --- CAL
↓ ↓ ↓
Product Code Clear Aperture "a"=10mm Material

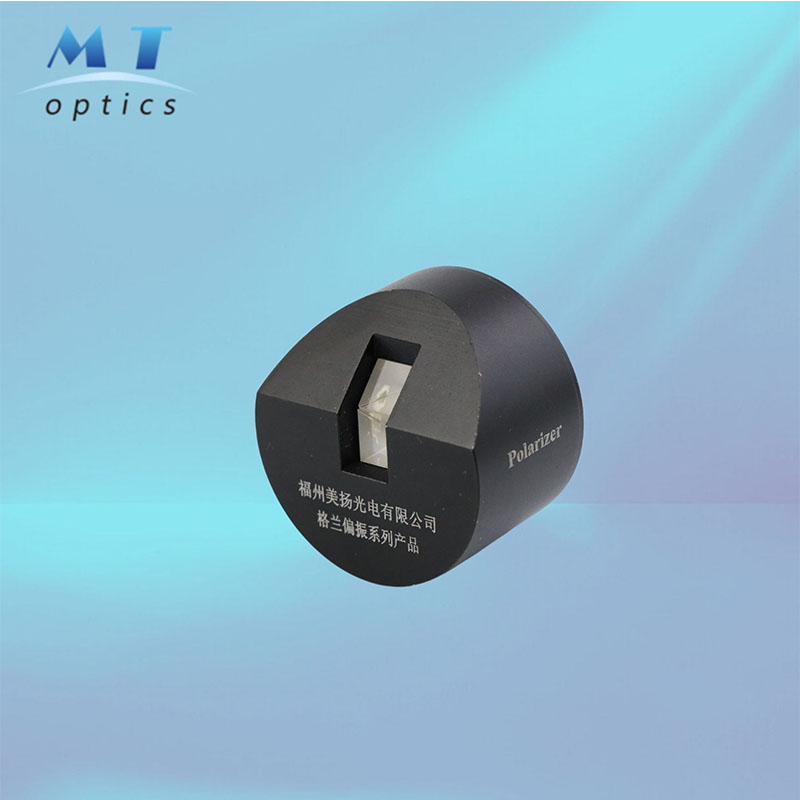

Glan-Taylor Polarizer：
|
Part Number |
Wavelength Range （nm） |
a （mm） |
D （mm） |
L±0.1 (mm) |
Material |
|
PGT-100-CAL |
350-2300 |
10 |
25.4 |
18.5 |
Calcite |
|
PGT-150-ABBO1 |
15 |
30 |
23.0 |
Calcite |
|
|
PGT-100-ABBO1 |
200-270 |
10 |
25.4 |
18.5 |
α-BBO |
|
PGT-150-ABBO2 |
15 |
30 |
23.0 |
α-BBO |
|
|
PGT-100-ABBO2 |
400-700 |
10 |
25.4 |
18.5 |
α-BBO |
|
PGT-150-ABBO3 |
15 |
30 |
23.0 |
α-BBO |
|
|
PGT-100-ABBO3 |
700-3000 |
10 |
25.4 |
18.5 |
α-BBO |
|
PGT-150-ABBO3 |
15 |
30 |
23.0 |
α-BBO |
Note：Custom designs for other sizes and coatings are also available upon request.
YVO4 Glan-Taylor Polarizer is also available upon request.
