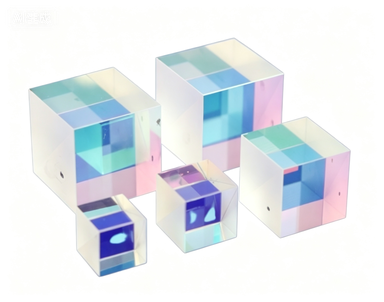

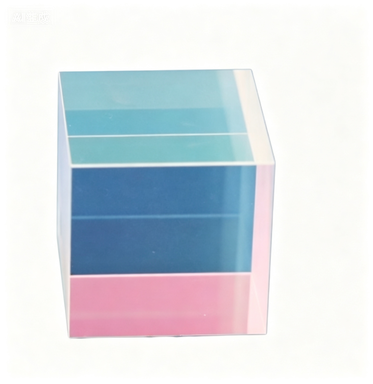

our non-polarizing beamsplitter (NPBS) cube is composed of a pair of precision high-tolerance right-angle prismscemented together with a metallic-dielectric coating on the hypotenuse of one of the prisms. The low polarizationdependence of the metallic-dielectric coating allows the transmission and reflection of s and p-polarization states to bewithin 5% of each other. This means that the NPBS will not need to change the polarization of the incident beam. We can supply both broadband and single wavelength for the NPBS. In order to produce maximum transmission efficiency forthe appropriate wavelength range, an antireflective coating can be applied to each face of the beamsplitter.
APPLICATIONS

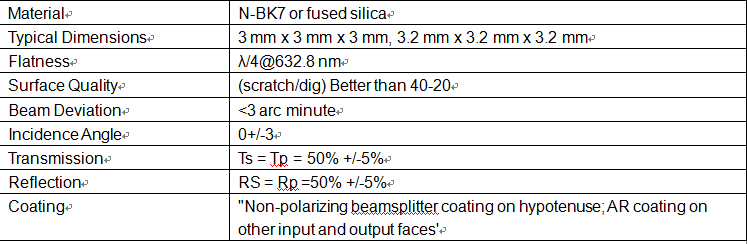

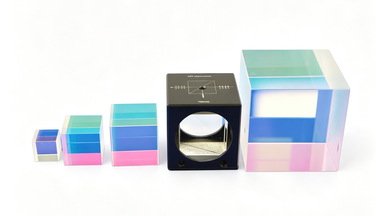

NON-POLARIZING BEAMSPLITTER CUBE

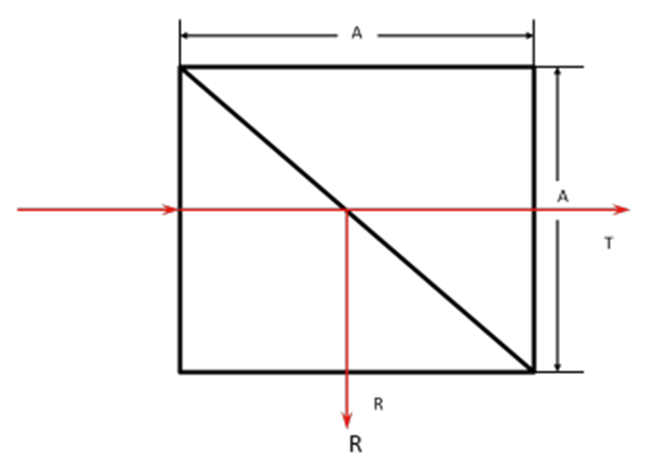

Dimensions
Ready to Get Started? Inquiry by email: rose@mt-optics.com
About Us

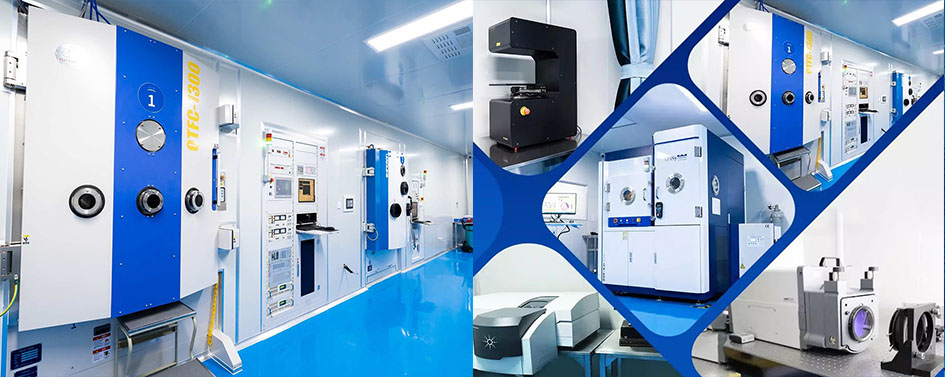

MT-Optics,Inc.was established in 2008, We are a private factory specializing of the export of multi-element optical compoment for imaging systems, and optomechanical equipment. MT-Optics owns advanced fabricating machine,including Optorun coating machine, CNC Grinding&polishing,High Speed &precision polishing,Ultrasonic cleaner,etc.And inspection instruments, like Zygo, Cary 5000, Trioptics Prism Master 0.5" prism measurement system and so on.Provider for high technology OEM customers.
